QHY174MM-GPS

Type d'annonce: Vente
Annonce ajoutée le 15-11-2025 par Pinx74 (577 visites)
Localisation: France - Saône

a saisir suite nouveau projet (Dobson 500mm) ma seconde camera

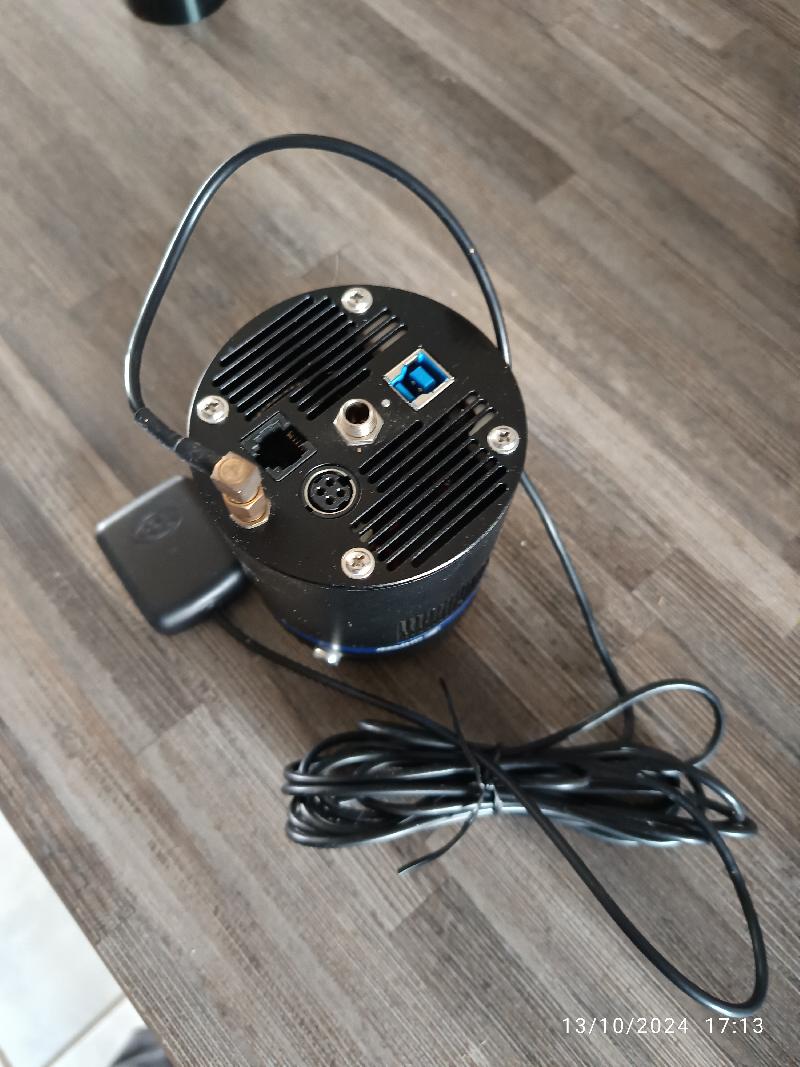

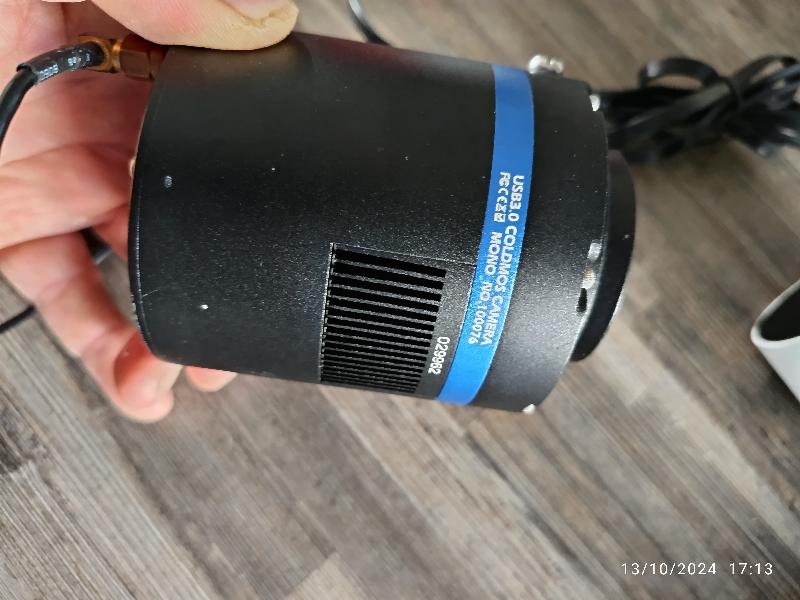

qui est une QHY174MM-GPS.


ideal pour les transit, occulations etc...

Sensor : SONY IMX174 CMOS
Pixel : 5.86um*5.86um
Effective Pixel Area: 1920*1200
Effective Pixels: 2mega
Effective Image Area: 11.25mm*7.03mm
QE: 78%
Fullwell: >32ke-
AD Sample Depth: 12/10bit (output as 16bit and 8bit)
Sensor Size: Typical 1/1.2 inch
Frame Rate *:
138FPS@1936x1216
260FPS@960x600
490FPS@480x300
ROI Support: Yes. Any Area ROI
Readout Noise:
5.3e-@Gain 0
2.8e-@Gain 60
1.6e-@Gain 100
Exposure Time Range: 5us-900sec
Binning: 1x1,2x2
Anti-Glow Control: Yes (Reduces amplifier glow significantly)
Shutter Type: Electric Global Shutter
Computer Interface: USB3.0 Super Speed
Non-volatile memory / On camera storage: Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space for stellar ROI frames for analysis of exoplanet investigation, occultations, atmospheric seeing measurement, focus , optic analysis etc. Support 100*100 image x 10rames 50*50 image x40frames. 25*25 image x160frames 10*10 image * 1000 frames （total frame numbers is based on 8bit image）
Cooling System: Dual Stage TEC cooler（-40C below ambient), (Test temperature +20°), Temperature Regulated
Anti-Dew Control:
Connector for removable silicon gel tube
Heater board for CMOS chamber optical window
Telescope Interface: M42/0.75 / 2inch faster installer. Optional C-mount adapter
Optic Window Type: Mono Version: AR+AR High Quality Multi-Layer Anti-Reflection Coating
Guide Port: 6PIN RJ11 Guide Port
Color Wheel Port: 4PIN QHYCFW Socket
Back Focal Length: 17.5mm
Weigth: 450g
Time-Stamp Precision (GPS version) : 1 micro-second of the GPS UTC clock



remis de préférence en main propre.
Prix:
950€ nouveaux prix
